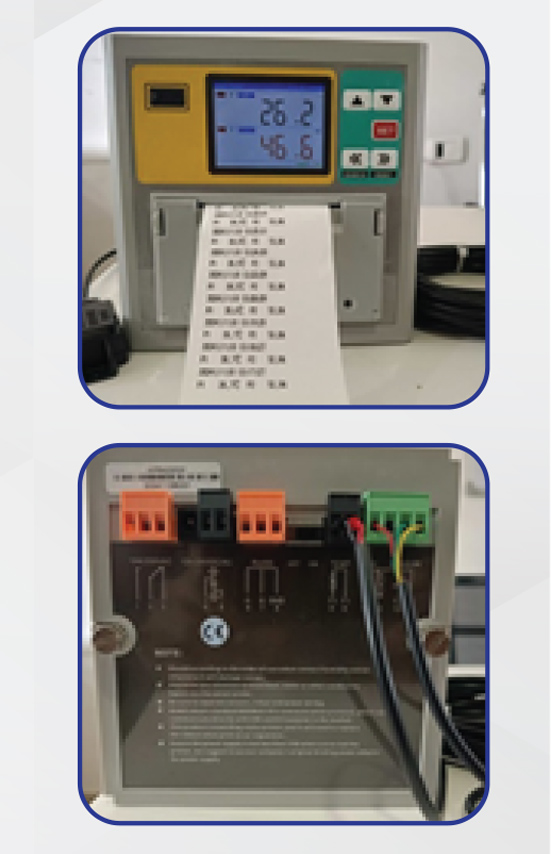

T & H Dataogger With Printer

Download Product Catalogue

The new generation MPR5000ST series paperless recorder has many outstanding features to meet the industry requirements. This recorder with touch screen adopts new the integrated circuit for input, output, power supply and signals with reliable protection and strong anti-interference design. It can set up to 32 channels for input types such as thermocouple, resistance, dc voltage, mv and current, also optional outputs configuration such as relay alarming, RS485, Ethernet, retransmission, auxiliary power supply, and printing as required. This recorder can display the measured data in history and real time on the digital curve, chart, and barograph display. It allows the measured data transferred to USB pen driver and use of the supported software attached to the recorder allows the saved data to be displayed on a personal computer.

Specifications:

Universal Input
Thermocouple Input K ( -50 ~ 1300°C), S ( -50 ~ 1700°C), T ( -200 ~ 350°C), E ( 0 ~ 800°C), J ( 0 ~ 1000°C ), B ( 300 ~1800°C), N ( 0 ~ 1300°C), R(-50~1700°C), WRe526(0~2300), WRe325(0~2300°C) Resolution: 0.1°C
RTD Input Pt100 ( -200 ~ 600°C), Cu50 ( -50 ~ 150°C ), Cu100 ( -50 ~ 150°C ), Resolution: 0.1°C
Analog Input Linear dc voltage : 0~5Vdc, 1~5Vdc, 0~10Vdc, Range : -30000~30000 Linear dc current : 4~20mA, 0~10mA, range: -30000~30000
mV Input 0~20mV, 0~50mV, 0~100mV, 0~500mV, Range : -30000~30000
Resistance Input 0- 400R, range:0-400Ω, Resolution:0.1Ω
Specified signal PT100-2, K-300, T-300, range:-200 to 300°C, resolution: 0.01°C (Please advise us if required to order)
General
Power Supply (100~240)VAC, Frequency: (47~63)Hz; 24VDC; Power consumption: ≤25W
Insulation Power to Ground: >1500 VAC Leakage power: 10mA, 1minute
Power to housing: >1500 VAC Leakage power: 10mA, 1minute
Display 7 inch 640x480 TFT color screen with touch screen
Accuracy Standard signal: 0.2%FS±1d;
Specified signal: PT100-2:±0.05%FS(±0.2°C), K-300, T-300: Accuracy ±0.05%FS (±1.2°C)
Real time clock High stable hardware real time, accuracy: ±5ppm; powered by batteries after power failure, its effective time is more than 30 days
Data transfer USB pen driver for data transferring, capacity: 8G, 16G, 32G, FAT32 format
Data storage All data is stored in Flash memory, no backup battery is required to ensure that all historical data and configuration parameters will not be lost due to power failure.
Flash memory 128Mbit; 256Mbit
Memory interval 1, 2,.....3600 seconds programmable, suggested max: 1800 seconds
Memory Capacity Ordered channels no.: ≤CH16, Memory Capacity: 90 days ÷ ordered total channel numbers x memory interval time
Ordered channels no.: >CH16, Memory Capacity: 180 days ÷ ordered total channel numbers x memory interval time
Environment Condition Working condition: Temperature: 0-50°C, relative humidity: 0%~85% (no dewing)
Storage: Temperature: -20 to 60°C, relative humidity: 0%~95% (no dewing); Altitude:<2000m
