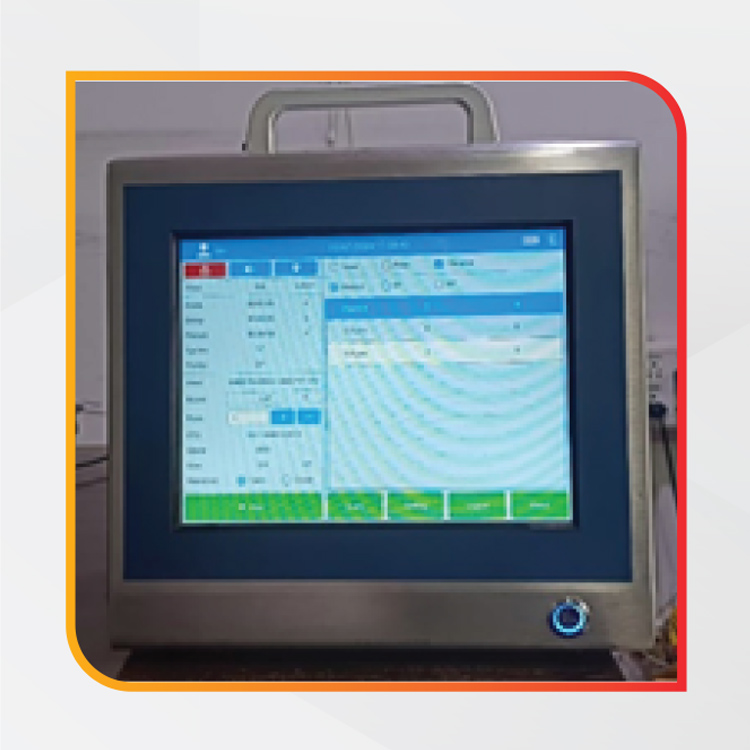

AIR PARTICLE COUNTER 100 LPM / 50 LPM

Air Particle Counter 100 Lpm / 50 Lpm

Download Product Catalogue

The basic principle of laser particle counter is the detection of optical sensor. After scattering by particles, the laser is received by photosensitive element and generates pulse signal. The pulse signal is output and amplified, and then digital signal processing is carried out. By comparing with standard particle signal, the comparison result is expressed with different parameters.
2- Channel remote particle sensors for Cleanroom monitoring applications.

FEATURES OF AIR PARTICLE COUNTER

  • Complaint with ISO 21501-4 Calibration Standard
  • 6 channels 0.5, 1.0, 3.0, 5.0 10 and 25μm sensitivity
  • Flow Rate: 100 LPM [3.53 CFM] & 50 LPM [1.77 CFM]
  • 21 CFR Part 11 complaint with IOQ Documentation
  • Extended warranty 1 year

BENEFIT OF AIR PARTICLE COUNTER

  • The dust particle counter has built-in long-life laser diode,
  • Reliable operation with heavy industrial electrical immunity compliance
  • Measures multi-Standard ISO14644-1:2015/GMP: 2015 & ISO 8573-1, 2, 3.
  • Light collection elliptical lens and unique optical system to provide concentration measurement range
  • The real-time display of particle data of 0.5, 1.0, 3.0, 5.0, 10 and 25μm 6 channels can be switched to display the actual particle number or particle concentration value (1m3)

APPLICATIONS

  • Cleanroom cleanliness detection
  • Pharmacy or Electronic Industry routine inspection
  • High concentration Aerosol Measurement
  • Airborne Particle Measurement
  • Hospital Surgical Operation Rooms
  • HEPA Filter Leakage test
Model LPC 0100 LPC 0050
Size Channels 0.5, 1, 3, 5, 10, 25 µm
Flow Rate 100 L/min [3.53 CFM] 50 L/min [1.77 CFM]
Optical Sensor Laser Diode
Counting Efficiency 50 ±20% at 0.5 µm 50 ±20% at 0.5 µm
Concentration Limit for 0.5 µm 300,000 particles/ft³ at 10% coincidence loss 500,000 particles/ft³ at 10% coincidence loss
Sampling Time 6 ~ 999999 s (Selectable)
Zero Count ≤10 min
Hold Time 0-9999 s
Delay Time 5-999 s
Printer Built-in Thermal Printer
Data Storage 20000 Samples/300 Samples of UCL (With PC Software)
Maximum Rated Particle Concentration 35000 particles/L
Display 7 inch Color Screen
Enclosure Material SUS316L Stainless Steel
Storing Environment Temperature: 10~35°C; Humidity: 20%~75% RH; Atmosphere Pressure: 86~106 Kpa
Outside Dimensions 268×295×192 (mm³)
Weight 8.4 kg
Max. Consumption 80 W
Power Source DC 16.8V
Standard Class & Reports ISO 14644-1:2015/GMP: 2015 & ISO 8573-1, 2, 3.
Interface Ethernet & USB
Security Password authentication and management, secure data, and audit trails (meets 21 CFR Part 11 compliance)
Power Supply Li-ion battery or AC adapter (100 to 240V)
Operating Time More Than 5.5 Hours
Accessories Including Operation manual, zero filter, 1 x Li-ion battery, AC adapter, sampling tubing, USB memory, isokinetic probe, Printer Paper Roll, NIST Certificate
