Elena T&H Pro

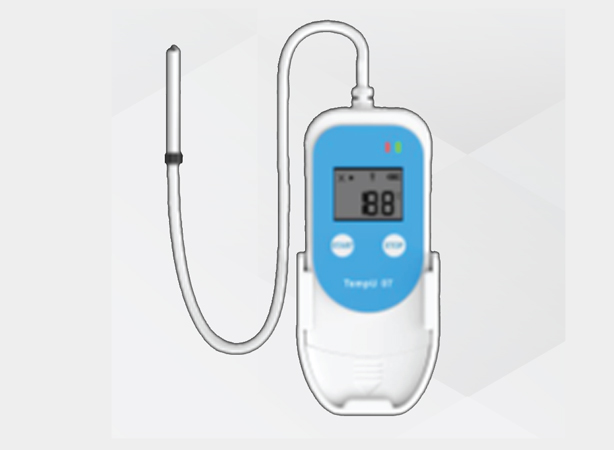

Download Product CatalogueTempU07B is a simple and portable LCD screen temperature and humidity data logger. This product is mainly used to monitor and record the temperature and humidity data during transportation and storage. It’s are widely used in all aspects of the warehousing and logistics cold chain, such as refrigerated containers, refrigerated trucks, refrigerated distribution boxes, and cold storage laboratories. Data reading and parameter configuration can be realized through the USB interface, and the report can be easily and automatically generated after insertion, and there is no need to install any drivers when it’s inserted into the computer.
Features:
- Designed to be Multi-use
- Temperature & Humidity measurement and recording
- Statistics available on LCD screen
- No software needed to export data
- Automatically generate PDF report and CSV file
- Reprogrammable software for logging parameters, alarms, and start delay
| Dimensions | 100mm*43mm*12mm |
| Weight | 85g |
| Probe Measuring Range | Temp: -40°C ~ 85°C, Humidity: 5%RH ~ 95%RH |
| Measurement Accuracy | ±3%(10% ~ 90%), ±5%RH (Other) ±0.3°C (0 ~ 60°C), ±0.6°C (other) |
| Alarm Range | User configurable |
| Waterproof | IP65 |
| Memory Capacity | 34560 |
| Start Mode | Button start or Timed Start |
| Temperature Resolution | 0.1% RH typically, 0.1°C |
| Usage | Multiple times |
| Battery Lifetime | More than 2 years (Normal temperature 25°C) |
| Recording Interval | User configurable (10 seconds to 99 hours) |
| Start Delay | User configurable (0 ~ 72 Hours) |
| Alarm Delay | User configurable (10 seconds to 99 hours) |
| PDF and CSV Report Generation Time | Less than 4 minutes |
| Communication Interface | USB 2.0 |
| Form of Report | PDF and CSV format data report |
