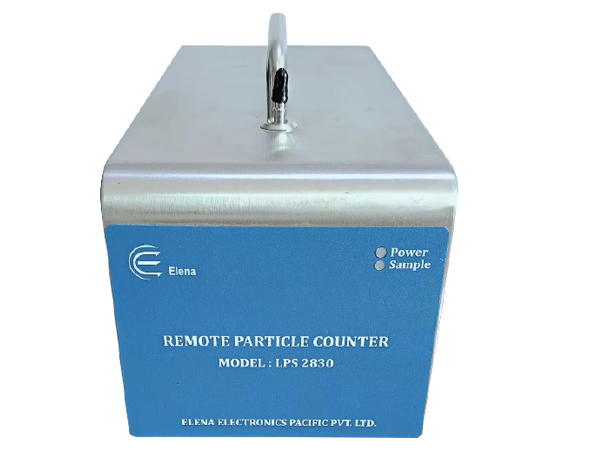

Lps 2830 Online Particle Sensor 1 Cfm
Download Product CatalogueThe 28.3LPM [1.0cfm] Built-In Pump Online Particle Counter, the Remote Sensor provides real-time continuous data collection at a cost-effective price per point. Using an internal vacuum source, the compact Remote Sensor can be installed where space is at a premium.
2- Channel remote particle sensors for Cleanroom monitoring applications
Features Of Online Particle Counter
- Compact laser particle sensor with stainless enclosure
- Two size channels: 0.5 & 5.0 micron sensitivity
- Flow Rate: 2.83L/min or 1 CFM
- Measures multi-parameters: particle, air velocity, temperature, humidity, differential pressure (optional)
- Multi-function, user-friendly monitoring software
Benefit Of Online Particle Counter
- Secure, long-term collection and storage of critical manufacturing data
- Reduce installation costs and complexity—wireless enabled with minimal infrastructure and built-in pump
- Simplifies integration with Ethernet or DC power
- Reliable operation with heavy industrial electrical immunity compliance
- Early-warning of adverse environmental trends with per second sampling
- Predictive instrument maintenance alerts
- ISO 14644-14 suitability for use classified sensor auto discovery
- Sample inlet capping auto-detect automatically stops built-in pump and prevents accidental damage
- Easy integration into third-party systems with 4-20 mA analog data output model options
Technical Parameters
| Model | LPS2830 | ||
| Size Channels | 0.5 µm, 5.0 µm | ||
| Flow Rate | 28.3L/min [1CFM] | ||
| Optical Sensor | Laser Diode | ||
| Counting Efficiency | GMP, ISO14644, FDA, JJF1190-2008 | ||
| Max Detectable Concentration for 0.5 µm | 500,000CNT/ft³ | ||
| Max Detectable Concentration for 5.0 µm | 500,000CNT/ft³ | ||
| Concentration Limit for 0.5 µm | 500,000 particles/ft³ at 10% coincidence loss | ||
| Setting Parameter |
Sampling Time: 1 to 60 seconds Output Range Setting (To be configured for each particle size) Count: 0-10CNT, 0-100CNT, 0-1,000CNT, 0-10,000CNT Concentration: 0-10CNT/cf, 0-100CNT/cf, 0-1,000CNT/cf, 0-1,000,000CNT/cf, 0-353CNT/m³, 0-3,530CNT/m³, 0-35,300CNT/m³, 0-35,300,000CNT/m³ Alarm Setting: 0%-100% Address Setting: 0-9600 Error Output Setting: ON/OFF |
||
| Sampling Pump | Inbuilt vacuum >51kPa | ||
| Interface & Communication | RS485, Analog Output (4-20mA), [0 to 10 V for calibration] Setting Software | ||
| Setting Software | English | ||
| Operating Environment | Temperature:10-40°C; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa | ||
| Storing Environment | 14 to 122°F (-10 to 50°C), up to 98%RH with no visible condensation | ||
| Outside Dimensions | 275*450*175 mm*(Wide*Deep*High) | ||
| Weight | 4kg | ||
| Max. Consumption | 40W | ||
| Power Supply | DC24V | ||
| Laser Power | Wavelength 775 to 800 nm [1550 to 1600mV] Output 80 mW | ||
| Laser Classification | Class 1 EN60825-1: 2007 [0 to 10V] | ||
| Peak Noise | Less than 200 mV | ||
| Laser Voltage Distribution [Threshold Voltage] |
|
